Hot Dipped MIL-10 Secure Perimeter Sand Filled Barriers Defense Bastion

High-Security MIL-10 Defence Bastion | Hot-Dipped Galvanized Sand Filled Perimeter Barriers

Product Overview

Our MIL-10 Secure Perimeter Sand Filled Barrier is a premium-grade, multi-cellular barrier system designed for rapid deployment in high-risk environments. Engineered to meet rigorous military and security standards, this Defense Bastion provides exceptional protection against ballistic impacts, explosive blasts, and unauthorized vehicle intrusion, making it an indispensable asset for modern perimeter defense.

Key Technical Specifications

• Model Standard: MIL-10 (Height: 2.21m, Width: 2.13m, length options customizable)

• Wire Diameter: 4.0mm to 5.0mm heavy-duty steel wire

• Mesh Size: Standard 76.2mm × 76.2mm (3" × 3")

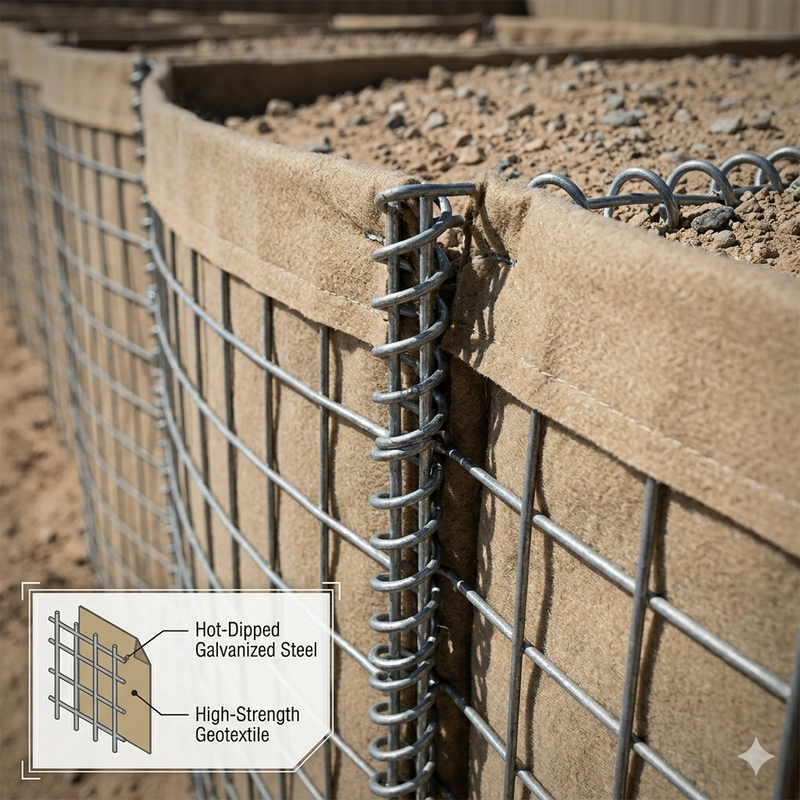

• Surface Treatment: Hot-Dipped Galvanized coating (up to 300g/m²), offering superior corrosion resistance in harsh desert, coastal, or humid climates.

• Geotextile Liner: Heavy-duty, UV-resistant non-woven polypropylene geotextile (available in Military Green, Desert Sand, or Coyote Brown).

Why Choose Our MIL-10 Defense Bastions?

• Exceptional Blast & Ballistic Mitigation: When filled with local materials like sand, earth, or crushed gravel, the thick mass forms a formidable solid wall capable of absorbing immense kinetic energy from explosions and small arms fire.

• Rapid Deployment & Easy Assembly: Shipped flat-packed on pallets to minimize logistics costs. The collapsible design allows a small crew with a front-loader to erect hundreds of meters of secure perimeter barriers in just a few hours.

• Robust Joint Connection: Utilizes heavy galvanized helical pins to connect individual units seamlessly, ensuring the integrity of the perimeter wall even over uneven terrain.

• Unmatched Longevity: The hot-dipped galvanized steel wire combined with specialized UV-treated geotextile ensures a service life of over 10+ years in demanding outdoor environments.

The Standard Technical Specifications from KN 1 to KN 19

• Custom sizes, wire gauges (3.0mm - 6.0mm), and coating options (Hot-Dipped Galvanized or Galfan coating) are available upon request.

• MOQ (Minimum Order Quantity): 20 FT Container (Approx. 6 - 200 sets depending on model).

## Primary Applications & Uses

• Military & Defense: Forward Operating Bases (FOBs), ammunition bunkers, border checkpoints, and personnel shelters.

• Flood Mitigation: Riverbank reinforcement, temporary cofferdams, flash flood protection, and coastal erosion control.

• Civil Security: Critical infrastructure protection (power plants, oil refineries), roadblock barriers, and perimeter security for high-profile events.

## Why Global Buyers Choose Our Barriers (Selling Points)

• Rapid & Easy Deployment: Arrives collapsed on pallets. Unfolds like an accordion. Connect individual units seamlessly using joining pins, and fill using a front-end loader.

• Superior Corrosion Resistance: Manufactured with Hot-Dipped Galvanized or Galfan (Zn-5%Al-MM) wire, ensuring a service life of up to 10–20 years in harsh outdoor or marine environments.

• Heavy-Duty UV Protection Geotextile: The inner liner is made of premium, non-woven UV-resistant polypropylene geotextile, preventing fill material leakage while allowing water permeability.

• Blast & Impact Protection: Engineered to absorb high-energy impacts, making them highly effective against blast waves, shrapnel, and vehicle ramming.

## Installation Guide (Step-by-Step)

1. Unpack: Remove the collapsed barrier module from the pallet.

2. Unfold & Position: Stretch the barrier wall out to its full length in the desired location.

3. Connect: Use the provided spiral joints or connecting pins to join multiple barrier units together.

4. Fill: Use an excavator, crane, or front-end loader to fill the cells with locally available sand, dirt, or gravel.

5. Compact: Compact the filling material slightly to ensure structural integrity.

## Global Project Case Studies

1. Emergency Flood Defense Project (Southeast Asia)

• Quantity Supplied: 450 Sets of KN-3 Barriers.

• The Challenge: A tropical monsoon caused severe riverbank breaches, threatening nearby agricultural lands.

• Result: Within 48 hours of arrival, local engineering teams deployed a 2.2 km temporary levee. The sand-filled barriers successfully contained the rising waters, preventing millions of dollars in potential flood damage.

2. UN Peacekeeping Base Fortification (Middle East)

• Quantity Supplied: 120 Containers of KN-1 & KN-10 Blast Walls.

• The Challenge: Establishing a secure compound in a high-risk desert zone with a tight timeline.

• Result: The modular, rapid-deploy design allowed the troops to erect a 4-meter-high perimeter security wall within 5 days using local sand, providing immediate ballistic and blast protection.

## Packaging & Logistics

• Packaging Details: Packed on robust wooden or iron pallets, wrapped with shrink film, and secured with steel straps to prevent damage during ocean freight.

• Loading Capacity: Optimized for 20GP or 40HQ containers to minimize shipping costs per unit.

• Lead Time: 15–25 days after deposit confirmation (for standard models).
