Hot Dipped Galvanized Welded Gabion Barrier Bastion Explosion-Proof Wall Explosion Proof Net

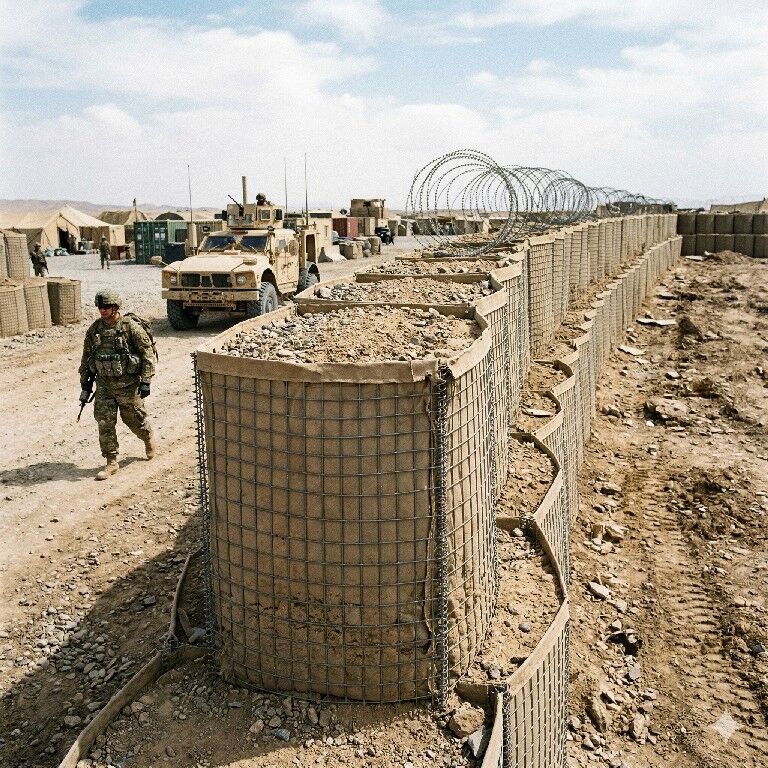

In military contexts, these barriers are used for base perimeter protection, vehicle bomb checkpoints, ammunition storage revetments, and even helicopter landing pads. In civilian scenarios, they serve as temporary flood walls, blast containment around industrial facilities, noise barriers along highways, and erosion control at construction sites. Their versatility makes them equally valuable in war zones and disaster relief.
Advantages: Lightweight to transport, rapid to deploy, re-usable (if carefully emptied), adaptable to terrain, and very effective against blast and ballistics. Limitations: They require a supply of fill material and mechanical equipment; they degrade under constant UV exposure if not coated or covered; and they are not designed to withstand direct hits from large-caliber tank shells or heavy bunker bombs. Also, once filled, they are difficult to move without emptying.
The Standard Technical Specifications
| Military Barrier Used Shooting Range Barrier |
| Model |
Height |
Width |
Length |
| mil-1 |
54"(1.37M) |
42"(1.06M) |
32'9"(10M) |
| mil-2 |
24"(0.61M) |
24"(0.61M) |
4'(1.22M) |
| mil-3 |
39"(1.00M) |
39"(1.00M) |
32'9"(10M) |
| mil-4 |
39"(1.00M) |
60"(1.52M) |
32'9"(10M) |
| mil-5 |
24"(0.61M) |
24"(0.61M) |
10'(3.05M) |
| mil-6 |
66"(1.68M_ |
24"(0.61M) |
10'(3.05M) |
| mil-7 |
87"(2.21M) |
84"(2.13M) |
91'(27.74M) |
| mil-8 |
54"(1.37M) |
48"(1.22M) |
32'9"(10M) |
| mil-9 |
39"(1.00M) |
30"(0.76M) |
30'(9.14M) |
| mil-10 |
87"(2.21M) |
60"(1.52M) |
100'(32.50M) |
| mil-11 |
48"(1.22M) |
12"(0.30M) |
4'(1.22M) |
| mil-12 |
84"(2.13M) |
42"(1.06M) |
108'(33M) |
| mil-19 |
108"(2.74M) |
42"(1.06M) |
10'5"(3.18M) |
1.Environmental Barriers, Flood Barriers, a reliable, easy-to-deploy, and robust solution for emergency flood
protection or long-term wetland restoration
2.Defensive Barriers: Protecting both and civilian personnel in dangerous environments demands defensive
solutions that are secure, reliable, and readily available.
3.Protective Barriers: Protect your workforce, Create a secure refuge for your employees by protecting up to
eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer- facing perimeter security where a more benign appearance is required.
The Application for Welded Gabion Barrier Military Barrier
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
